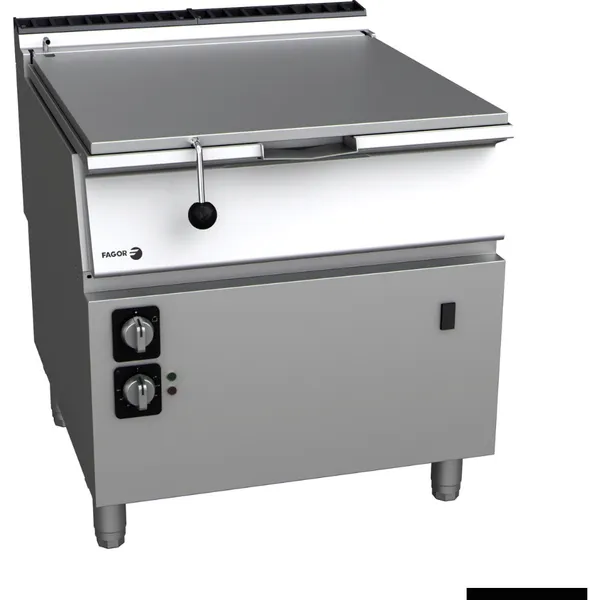

Fagor Kore 900 Series Gas Tilting Bratt Pans - SB-G910I
SKU: 410SB-G910I
Unit Size
each
Units per Pack
1
SKU
410SB-G910I
Price
$17,017.50 ex GST
$17017.500 /ea · 1 eas
Log in to see your member price
Flat Rate Shipping
Australia wide
30 Day Returns
Hassle free
Professional gas tilting bratt pan with 90L capacity, available in NG or LPG. Features motorised or crank operated elevation systems that raise the pan vertically for complete emptying. Available in cast iron and stainless steel pan versions with laser-cut joints, automatic welding, and hidden screws. Designed for commercial kitchen use with IPX5 water protection and front component access.
Items you might like
Features
- NG or LPG, 90L capacity
- Laser-cut joints, automatic welding and polishes. Screws hidden from view
- Motorised or crank operated elevation systems which are able to raise the pan until it's vertical, to empty it completely
- Versions with cast iron and stainless steel pans
- Pan design with rounded corners and no edges, with wide opening for unloading
- Flange around the perimeter to stop any condensed water from spilling over
- Very thick bottom (8mm for iron pans and 10mm for stainless steel pans), guaranteeing even heat distribution
- Pans filled with water by means of electric valve operated with switch on the front
- Double walled lid with drainer at the back to redirect water of condensation back into the well
- Lid balance system by springs
- Compensation system to avoid heavy falls, can be regulated
- Micro breaking switch halts heating when the pan is raised
- High temperature enamelled cast iron flue protector
- Access to the components from the front
- Machines with IPX5 grade water protection
- Front access lid handle
- Temperature of the bottom of the pan controlled by thermostat, between 50 and 310°C
- Branched burners located in the base ensure maximum uniformity of temperature distribution
Specifications
| Knobs | 2 knobs |
| Net Weight (Kg) | 211 |
| Width (mm) | 800 |
| Depth (mm) | 930 |
| Height (mm) | 850 |
| Packing Width (mm) | 840 |
| Packing Depth (mm) | 1080 |
| Packing Height (mm) | 1125 |
| Power | 18KW; 64.8MJ/h |
| Capacity | 90L |
| Temperature Range | 50-310°C |
| Pan Bottom Thickness (Iron) | 8mm |
| Pan Bottom Thickness (Stainless Steel) | 10mm |
| Water Protection Grade | IPX5 |
| Warranty | 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice |
Product Dimensions
| Width | 800mm |
| Depth | 930mm |
| Height | 850mm |
